EXPS-M043
4K DisplayPort KVM Extender With USB, Audio, IR, Serial, 150M
DisplayPort over CAT6, 4K30@150M, USB 2.0, Two-Way Audio/ Serial, and IR Extend, EXPS-M043

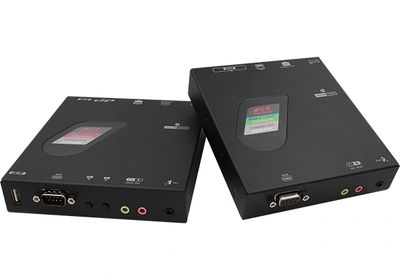

EXPS-M043 = EXPS-043P (Tx, USB Host) + EXPS-043S (Rx, USB Device)
DisplayPort over CAT6, EXPS-M043, consists of a Transmitter (USB Host) and a Receiver (USB Device) unit that allows you to extend DP/ Audio/ USB 2.0/ IR/ RS-232 signals. It transmits 4K DP video up to 150 meters (490 ft) over CAT6 Cabling.
- Allows Reliable Remote Access of a Computer via a CAT.x Cable Up to 150 meters ( 492 feets )
- DisplayPort Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
- Support Special Aero/Marine Resolution of 2048x2048@60Hz ( 4:4:4 )
- HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
- USB 2.0 Extension Transparently Supports Keyboard, Mouse, USB Drive, and Others
- Front and Rear USB Ports Allow Easy Access
- Smart Audio Extension Allows Embeded Audio and Audio Extraction
- IR Extension from Console Unit to Computer Unit Facilitates IR Control of AV Sources
- Serial Extension with Selectable Baud Rate Allows for Extensive Control Applications
- Connection May Go Through V-LAN Enabled HUB
- Plug-and-Play, No Driver or Software Required
- Support Windows / Mac / Linux / Chrome O.S.
- Interoperability among HDMI / DVI / DisplayPort Models
- Allows Wide Power Input Range DC 12~48V
- PoC ( Power over Cable ) Allows The Power Transmission from Either Tx-to-Rx or Rx-to-Tx
